Baseball caps and trucker hats use a small set of hardware for the adjustable back and the crown top. On 3DANsupplies, the Hat & Cap Making collection groups strap buckles, extend-buckle sets, top buttons, strap eyelets or grommets, and matching setters or punches for repair and small-batch making.
This guide covers the back-strap parts, buckle and top-button sizing as listed, when kits help versus parts alone, and when to add mesh for building ventilated caps.

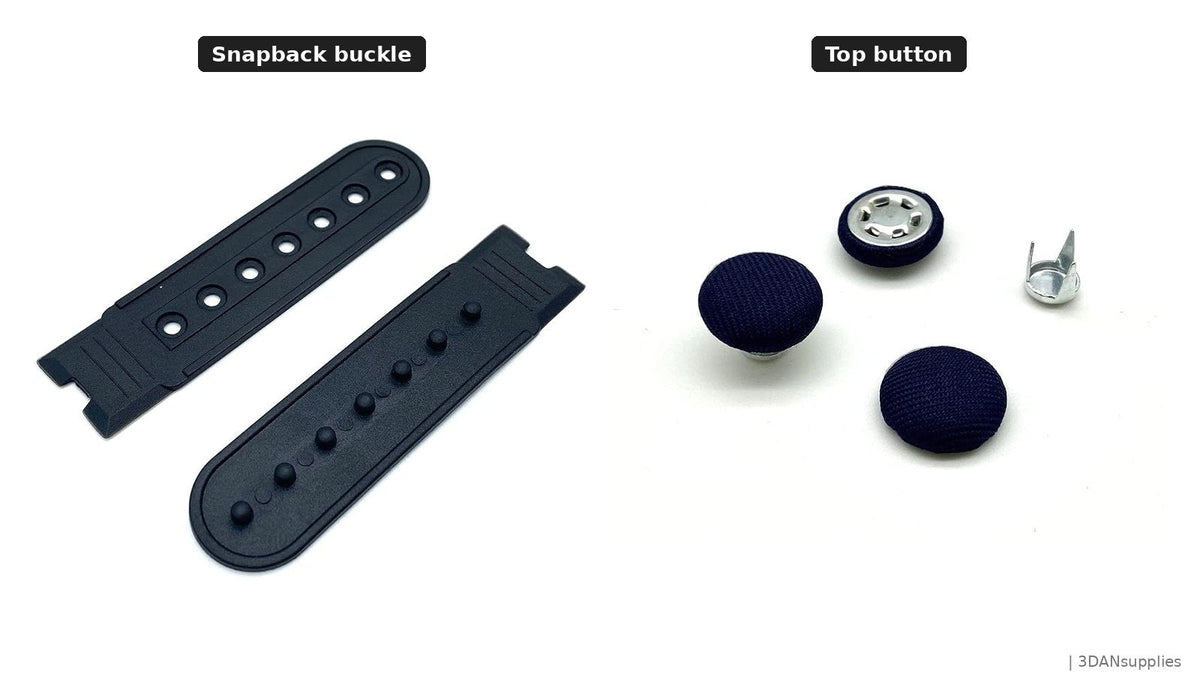

Parts of an adjustable ball-cap back
An adjustable ball-cap or trucker back usually has three related pieces:
- Strap — plastic snapback with holes, fabric strap, or elastic, depending on the hat style.
- Slide / buckle (strap adjuster) — the metal or plastic buckle that grips or clasps the strap so the fit can change.
- Strap grommets or eyelets — often oblong or round openings on a fabric strap where the buckle or lace passes; many repair listings include eyelets with the buckle.
Replacement work often means matching the buckle width to the strap, then replacing worn eyelets if the strap fabric is reused. Snapback plastic straps may need a buckle extender or a full strap-and-buckle set instead of a metal slide alone—read the product title for “snapback,” “extend buckle,” or “strap adjuster.”
Cap strap buckle and extend-buckle sets
Cap strap buckle and extend buckle listings are adjustable back closures: a slide or clasp sized for baseball-cap and trucker straps. Titles may say Cap Strap Buckle, Hat Cap Extend Buckle, Adjustable back closure, or Cap Strap Adjuster Buckle. Some sets include the strap and buckle together; others are buckle-only or buckle-with-eyelet packs.
“Adjustable back closure” on a listing means the hardware that lets the wearer tighten or loosen the back—not the crown button and not the front panels. Brass and zinc-alloy buckle styles appear in this collection (for example, 3/4" brass cap strap buckles with eyelet grommets, and 5/8" / 16 mm zinc-alloy strap adjuster sliders). Confirm whether eyelets are included before you order punches or setters separately.
Top button (crown button) size examples
The top button (crown button) covers the panel join at the peak of the crown. Catalog examples include 9/16" (14 mm) baseball-cap button repair kits with tools, and 5/8" (16 mm) button-and-tool listings for baseball and trucker caps. Other top-button replacement packs list multiple colors without always repeating the size in every title—check the product page for diameter before you buy.
Match button size to the existing crown hole and fabric thickness on the hat you are repairing. Kits that include setting tools are useful when you do not already own a cap-button setter; button-only packs suit shops that already have tools.
Matching buckle width to strap
Buckle width must clear the strap. Install tools in this collection are labeled by strap size—for example, a Cap Strap Buckle Installation Tool - 3/4" (19 mm). Metal adjuster buckles also list widths such as 5/8" (16 mm) and 3/4". Measure the strap width on the hat (or the replacement strap) and pick a buckle and tool in the same size family.
A buckle that is too narrow will not accept the strap; one that is much wider can sit loose or look uneven. For plastic snapback straps, use listings named for snapback or plastic strap replacement rather than forcing a fabric-strap metal buckle onto a molded snapback.
Eyelets, oblong grommets, and punch/setter tools
Fabric cap straps often use round eyelets or oblong grommets where the buckle engages. The hat collection includes round eyelet setters, oblong grommet punches, and setting-tool kits aimed at cap buckle and grommet replacement. Broader eyelet and oblong grommet assortments also sit in Rivets, Snaps & Eyelets when you need extra sizes or finishes beyond the hat-specific packs.
Punch a clean hole sized to the eyelet, then set with the matching tool. For general leather punches and setters outside hat work, see Leathercraft Tools. Prefer the hat-labeled punch or setter when the listing names cap strap or oblong grommet replacement—those tools are sized for common cap strap geometry.
When to buy a parts-and-tools kit vs parts alone
Buy a parts + tools kit when you are repairing caps occasionally and do not already own a button setter, buckle install tool, or grommet punch. Examples in the catalog include baseball-cap button repair kits with tools (such as 9/16" / 14 mm kits) and setting-tool packs for cap buckle or grommet replacement.
Buy parts alone—buckles, buttons, straps, or eyelet packs—when you already have the matching setters, or when you are stocking one size for repeated repairs. Shops that run many caps in one strap width usually keep a 3/4" (19 mm) or 5/8" (16 mm) tool on the bench and reorder buckles and buttons as consumables.
Pairing with mesh for trucker-style backs
If you are building trucker-style or ventilated caps—not only replacing a buckle or top button—you may need mesh for the back panels. Browse Fabric & Mesh for mesh sold for that use. Hardware from Hat & Cap Making still covers the adjustable closure and crown button; mesh is only for panel construction.
Repair-only jobs (swap buckle, restitch strap, replace top button) usually do not need mesh. Add Fabric & Mesh only when cutting new ventilated panels.
Shop path
Start in Hat & Cap Making. Pick the job: strap buckle / extend buckle, top button, or strap eyelets/grommets. Match width or button diameter to the hat, then add the labeled install tool if you need it. Open Fabric & Mesh only if you are building mesh back panels. Use Rivets, Snaps & Eyelets or Leathercraft Tools when you need extra eyelets or general setters beyond the hat kits.
