Webbing width and hardware width are the same decision from two sides. One guide in this series covers choosing webbing width for bag straps; this guide focuses on measuring the hardware—buckles, rings, sliders, and snap-hook eyes—so the strap passes flat and stays centered. On 3DANsupplies, those parts live in Webbing & Cord, Rings, Buckles & Sliders, and Snap Hooks & Connectors.
This article is a measurement checklist: how to read bar and eye widths on titles, how they line up with webbing listings, and how to keep one width through the whole strap system.
Why hardware width is the bottleneck
A buckle frame, D-ring bar, rectangle ring, ladder lock, or snap-hook eye has a fixed opening. That opening must accept the webbing flat, with a little clearance for stitching or a folded end—not so much clearance that the strap slides sideways in the frame.
If you buy webbing first and hardware second, measure or note the hardware size on the product title before you cut. If you already own buckles or hooks, measure the clear opening with a ruler and buy webbing in that nominal width. Length is adjustable when you sew; width is not without changing hardware.
How to measure strap vs hardware
Use the same units the catalog uses (inches and millimeters appear together on many titles):
- Webbing width — measure the tape edge to edge, or read the width on the Webbing & Cord title (for example, 1" or 1 1/2").
- Buckle / slider bar width — the clear width inside the frame or across the bar where the webbing sits. Titles often state this as 3/4" (19 mm), 1" (25 mm), or 1 1/2" (38 mm).
- D-ring or rectangle ring — the size labeled on the ring is the strap size family to match (for example, 3/4" / 19 mm or 1" / 25 mm D-rings).
- Snap-hook eye — the opening that takes the strap or ring. Eye widths in this catalog include examples such as 3/8", 1/2", 5/8", 3/4", 1", and 1 1/4" depending on the clasp.
When in doubt, hold the webbing against the hardware opening (or compare both product photos at the same scale). The strap should fill the opening without folding on edge.
Catalog width examples on rings and buckles
Live Rings, Buckles & Sliders titles include width examples such as:
- 3/8" (11 mm) center-bar pin buckles
- 5/8" (15 mm) rectangle pin belt buckles (slim and heavy frame variants)
- 3/4" (19 mm) zinc alloy D-rings, center-bar slide buckles, and related strap parts
- 1" (25 mm) zinc alloy center-bar pin buckles, rectangle rings, iron or zinc D-rings and O-rings, black plastic ladder lock / triglide
- 1 1/2" (38 mm) center-bar pin buckles, iron D-ring pin belt strap loops, triangle back slide / suspender-style adjusters, stainless belt buckle blanks
Also listed: Tri-Glide Slider (Strap Adjuster), Zinc Alloy; iron roller pin strap buckles; zinc alloy single-prong / center-bar strap buckles; spring-gate O-rings. These are catalog examples, not a full industry chart—always read the size on the product you are buying.
Matching those sizes to webbing titles
Webbing & Cord listings use the same inch language:
- 3/4" to 1 1/4" cotton-feel polyester webbing (width range as options on one listing)
- 1" polyester-cotton blend and striped webbing (including 5-yard packs)
- 1 1/4" polyester-cotton blend webbing sold by the yard
- 1 1/2" (3.8 cm) heavy-weight polyester-cotton stripe styles
- 1 1/2" to 2" cotton-feel polyester options on some handle/strap styles
- Nylon heavy-weight and extra-thick webbing ribbons (confirm selected width on the product page)

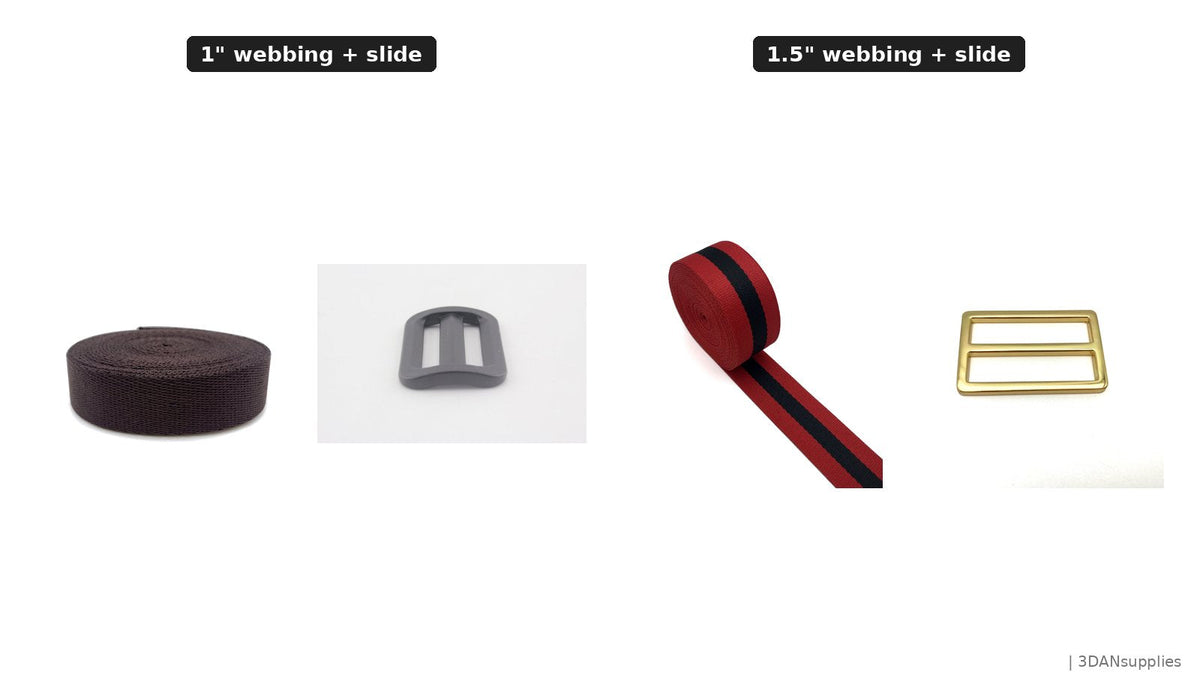

Pair 1" webbing with 1" D-rings, 1" rectangle rings, 1" pin buckles, and 1" ladder locks. Pair 3/4" webbing with 3/4" (19 mm) rings and slides. Pair 1 1/2" webbing with 1 1/2" (38 mm) buckles and rings. Do not force 1 1/4" webbing through a 1" frame.
For a longer discussion of webbing materials and yardage planning, see the webbing-width guide draft in this folder; this article stays on the hardware match.
Snap-hook eye clearance
After the buckle and rings fit, check the snap-hook eye in Snap Hooks & Connectors. Flat webbing usually seats better on D, square, oval, or trapezoid eyes than on a small round eye meant for cord. Round eyes still appear on many clasps—use them when the strap end is rounded, capped, or thinner than the webbing face.
Eye width should be at least the strap width, with clearance for a fold or stitching. Catalog examples include push-gate and bolt snaps with D or round eyes at widths such as 3/8", 1/2", 5/8", 3/4", 1", and 1 1/4", plus sets such as a swivel snap hook with slider and rectangle ring at 38 mm. Width fit comes before swivel vs fixed: a swivel does not fix an eye that is too narrow.
Ribbon end crimp clamps (with or without loop) and rope end caps are related connectors for ribbon or cord—not substitutes for a webbing-width match on a flat strap. Use them when the strap end is ribbon or rope, not when you need a full-width webbing eye.
Ladder locks, triglides, and pin buckles
Width-specific adjusters and buckles fail first when sizes are mixed:
- Plastic ladder lock / triglide — a 1" black plastic ladder lock expects 1" strap on both the fixed and sliding paths.
- Tri-glide / center-bar slide — zinc or iron strap adjusters labeled 3/4" (19 mm) or similar need that strap width to lock evenly.
- Center-bar pin buckles — the webbing should fill the frame so the pin sits centered; 1" buckle with 1" webbing, 1 1/2" with 1 1/2".
If the strap is much narrower than the frame, it can wander. If it is wider, it may not pass. Keep one nominal width from webbing through every ring, buckle, slider, and hook eye on that strap.
One-width rule for the strap system
A practical build order:
- Decide finished strap width from the pattern or comfort (shoulder vs tote handle).
- Select webbing in that width in Webbing & Cord.
- Select D-rings, rectangle rings, pin buckles, or ladder locks in the same width in Rings, Buckles & Sliders.
- Select snap hooks whose eye clears that width in Snap Hooks & Connectors.
- Match finish family (nickel, antique brass/bronze, gold tones, and others as listed) across the metal parts when possible.
Do not invent load ratings from width alone. For heavy bags, prefer the heavier or solid styles shown on the product page and test a sample tab in your materials.
What to open next
Start with the width number you need, then open webbing, then rings/buckles, then snap hooks. Confirm the size on each product page before you cut strap length.
