D-rings, O-rings, and rectangle rings all connect straps, webbing, and bag tabs. On 3DANsupplies they live in Rings, Buckles & Sliders with pin buckles, tri-glide sliders, and related strap hardware.
This guide compares D-rings and O-rings, explains when a rectangle ring helps, and shows how to match ring width to strap material. It uses size and material words as listed on live product titles.
What shape each ring gives you

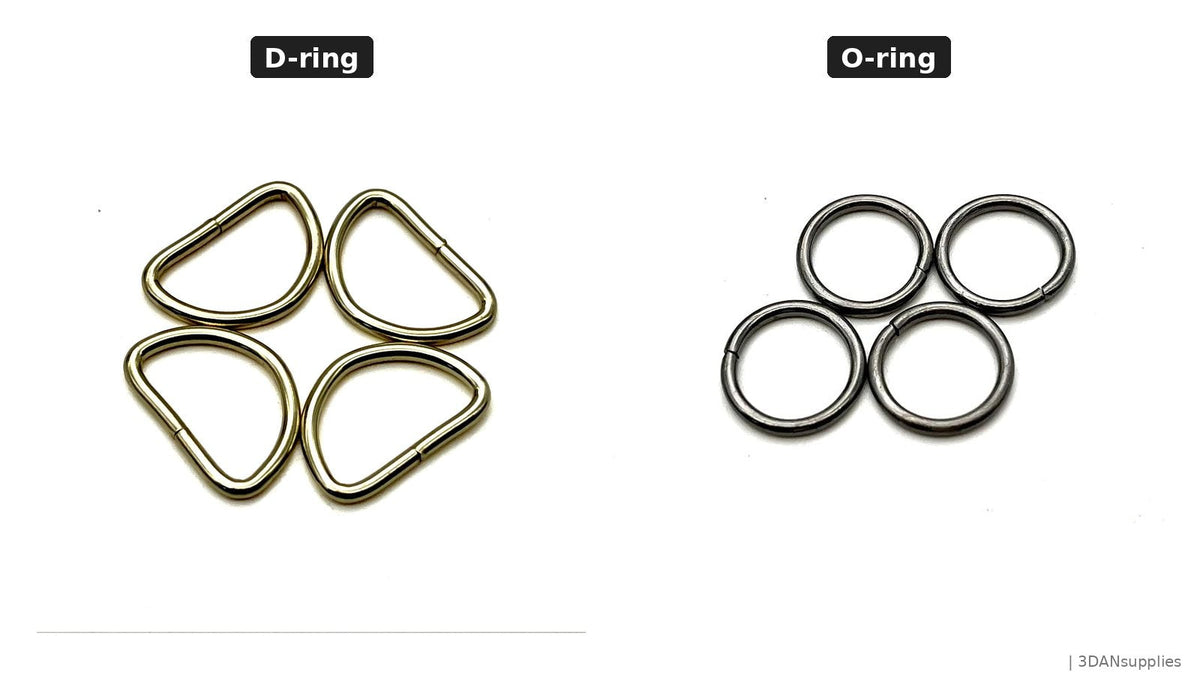

A D-ring (titles often say D Shape Rings, Semi-Circular D-ring buckles, or D-Rings) has a flat bar and a curved side. The flat bar is the usual place for a sewn webbing or leather tab. The curve takes a snap hook, swivel, or second strap. The flat edge keeps the strap from sliding around the whole ring.
An O-ring (Round O Ring in this catalog) is a continuous circle. The strap and hook can rotate more freely around the ring. Large wire O-rings also appear as handle-size circles (for example, a 3" / 75 mm circle round wire O ring listing). Spring Gate O Ring styles add a gated opening so you can clip items on without sewing the ring closed in a loop.
A rectangle ring has straight bars on all sides. Wide webbing sits evenly on the bar. Rectangle rings are common on belt-style loops, bag side tabs, and straps that should not rotate on a round wire.
Oval rings in the same collection sit between O and rectangle: elongated loops for connectors. They are related hardware, not a substitute until you check opening width on the product page.
When D-rings are the better fit
D-rings fit strap ends, side tabs, and places where the load should sit on a flat bar. Bag makers use them for shoulder-strap anchors, dog-collar-style side rings (as some titles note), and clip-on handle points.
Catalog examples include Zinc Alloy D-Rings such as 3/4" (19 mm), Non-Welded Iron D-Rings at 1" (25 mm), and wider iron or zinc D styles around 1 1/2" (38 mm). Screw in D Ring (vachette / dismountable screw) styles open so you can add the ring to a closed strap loop without restitching—useful for repairs and sample bags.
Choose a D-ring when your pattern shows a flat tab sewn to a bar, or when a snap hook should hang from the curved side while the strap stays squared on the bag.
When O-rings are the better fit
O-rings fit when rotation is useful, when both attachments are round or cord-like, or when the pattern calls for a round ring rather than a D. Small round O-rings work as strap connectors; larger wire O-rings can act as handle rings for light bags (confirm strength and wire thickness on the PDP—do not assume a handle-size O-ring matches a heavy tote load).
Spring Gate O Ring listings add a trigger or gate for keys, charms, or quick strap changes. Treat spring-gate O-rings as a gated connector: check gate opening against the item you will clip.
Iron and zinc alloy round O-rings both appear; finish options such as nickel tones, light gold, and other listed colors should match nearby snap hooks when possible.
When a rectangle ring helps
Use a rectangle ring when the strap is wide and you want a straight contact face, when the bag tab is rectangular, or when the pattern names a rectangle loop instead of a D. Catalog titles include iron and zinc Rectangle ring styles, with common widths such as 1" (25 mm).
Rectangle rings keep webbing from bunching on a curve. They also pair well with center-bar pin buckles and tri-glide paths on wide straps: the ring holds a fixed loop while the buckle or slider adjusts length elsewhere.
If you are unsure between D and rectangle for a sewn tab, look at the strap width and the drawing. A D-ring’s flat bar behaves like a short rectangle edge; a full rectangle gives two long bars and a more belt-like look.
Matching width to webbing and hardware
Ring size in this collection is usually the strap width the bar accepts—not the outside frame size alone. Common labels include 3/4" (19 mm), 1" (25 mm), and 1 1/2" (38 mm). Match that number to your webbing or strap blank.
Leave a little clearance for folded leather or bulky bindings. A strap that is exactly the bar width can bind when doubled. Measure the bar opening on the product photos if your strap is leather of uneven thickness.
Pair rings with clasps from Snap Hooks & Connectors: the hook eye should fit through the ring opening with room to move. For ready-made straps and chains, see Straps & Chains.
Related parts that are not the same
Keep these separate when you shop:
- Tri-Glide Slider and plastic ladder lock / triglide slides — adjust strap length; they are not fixed anchor rings.
- Center-bar pin buckles and rectangle pin belt buckles — belt-style fasteners with a tongue or pin.
- Triangle back-slide / suspender adjusters — different geometry for suspender-style straps.
- Iron oval rings — elongated connectors; check width like any other ring.
- Non-Welded vs welded construction — noted on some iron D-ring titles; inspect the joint in photos if the strap will see hard pull.
Screw-in D-rings are still D-rings by shape; the screw is only the open/close method for install.
Finish and material notes
Titles call out zinc alloy, iron, and occasionally stainless on related buckles. Finishes include nickel and other tones shown per product. Match ring finish to snap hooks, sliders, and bag feet in the same family when the bag shows multiple metal parts together.
Do not invent load ratings. For heavy bags, prefer the heavier wire or solid styles shown on the product page and test a sample tab in your materials.
What to open next
Open Rings, Buckles & Sliders. Choose D-ring, O-ring, or rectangle from how the strap tab and hook should sit. Match the width label to your webbing. Add snap hooks or straps only after the ring size is set.
